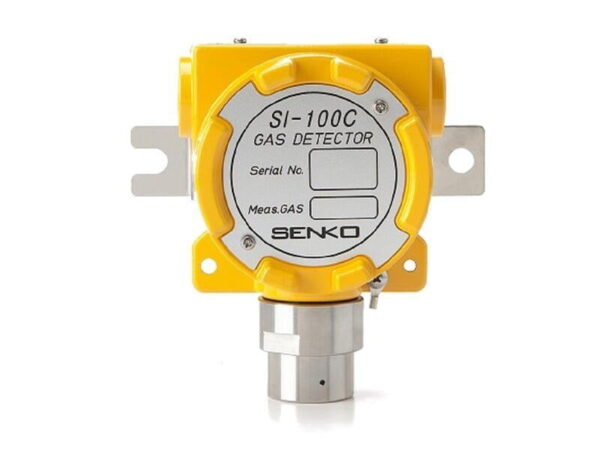

SI-100C Fixed Gas Detector
SI – 100 C is a simple, low cost fixed gas detector offering an analogue 4-20mA signal in an ATEX approved flameproof housing. It is available with nine different sensor options.
Description
Specifications
| Detecting | Diffusion Type | ||||
| Measuring Gas | Toxic Gas | Oxygen | Oxygen | Combustible Gas | |
| Measuring Method | Electrochemical cell | Galvanic | Electrochemical cell | Catalytic | IR |
| Accuracy | ± 3% / FullScale | ||||
| Alarm | 1st alarm, 2nd alarm | ||||
| Output Signal | Analog Output:4-20mA | ||||
| Cable/ Distance | Analog : 4-20mA/Maximum 2,500m | ||||
| Operating Humdity | -20°C ~ 50°C, 5~95% RH (Non-condensing) | ||||
| Operating Power | 10~30V DC | ||||
| Dimensions | 150(W) X 165(H) X 110(D)mm, 1.0kg | ||||
| Approval | Ex dIIC T5, IP65 | ||||
Download Manual:
