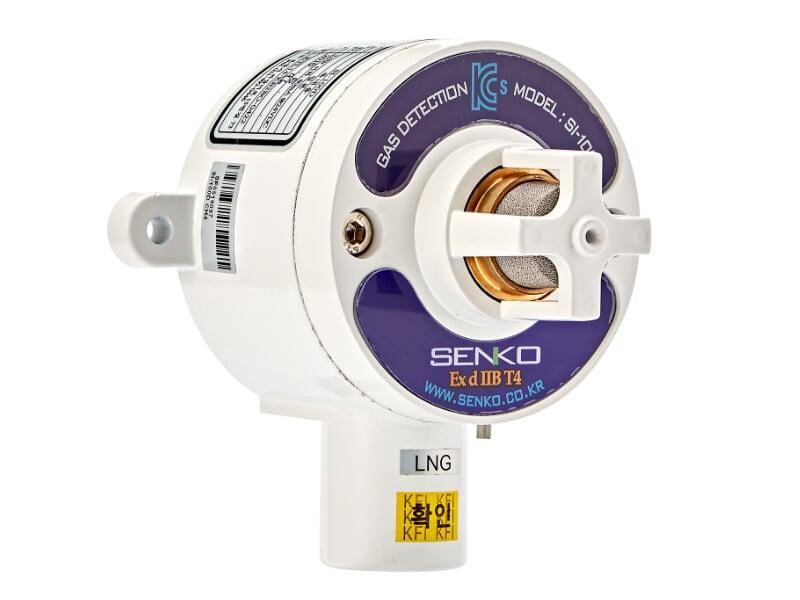

SI-100D Fixed Gas Detector
SI 100D is a simple low cost flammable gas sensor with a catalytic (pellistor) type sensor. It has a range of 0-100% LEL and provides an industry standard 4-20mA signal which can be interfaced with multiple indicators and panels.
The device is easy to install and has an explosion proof (Ex d IIB T4) housing making it suitable for hazardous area use.
Description
Specifications
| Detecting Method | Diffusion Type |
| Detecting Gas | Combustible Gas |
| Sensor Type | Catalytic |
| Detecting Range | 0~100% LEL |
| Accuracy | ±3% / Full Scale |
| Output signal | 4-20mA |
| Telemetering Line Length | Analog output max. 2500m |
|
Operating Temerature & Humidity
|
-20°C ~ +60°C, 5~95% RH (Non-condensing) |
| Power | 24V DC (Consumtion ≤ 2.0W, 80mA@24V DC) |
| Dimensions | 93(W) X 106(H) X 89(D)mm, Weight:0.6kg |
| Explosion Proof | Ex d IIB T4 |
