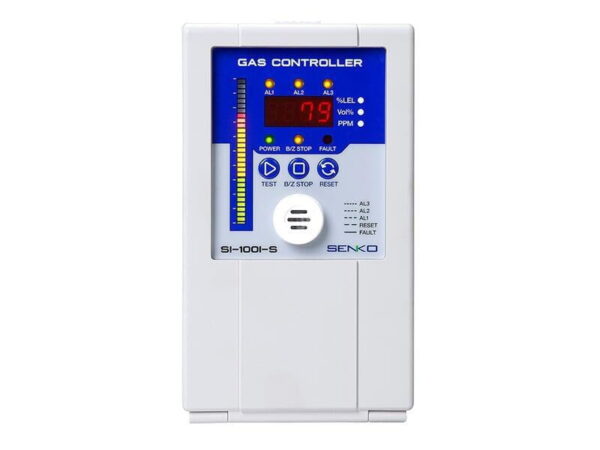

SI-100IS Fixed Gas Detector
SI – 100 IS is a simple low cost single channel control panel offering a local bar chart and digital readout, along with three levels of alarm.
Description
Specifications
| Measuring range | Programmable within detection range |
| Display | 30-Bar graph, 3 Alarm LED, 3 Status LED, 7-Segment(4Digit) |
| Sound | buzzer(Alarm1,2,3, Reset, Fault), 80dB |
| Operation mode display | 3 Alarm LED, 3 Status LED |
| Measuring value display | 30-Bar graph, 7-Segment(4Digit) |
| Alarm level set | Alarm1,2,3 Programmable within detection range |
| Alarm signal output | Alarm 1,2,3 – 12V.DC, Dry contact (com, no, nc), comm 12V.DC, Dry contact(com, no, nc) |
| Input Signal | 4/20mA signal |
| Cable/Distance | CVVSB 1.5sq or AWG20 × 3wire (Power + Signal) / 2,500m max |
| Mounting type | Wall mount |
| Program set mode | ALARM1,2,3, Range, 4-20mA Calibration etc. |
| Operating temperature | -20ºC ~ +50ºC |
| Operating humidity | 5%~95%RH(Non-condensing) |
| Operating power | 100~240V INPUT AC (50/60Hz), <0.24A |
| Material | ABS AF308 |
| Dimensions | 120(W) × 200(H) × 51(D)mm |
| Weight | 0.5kg |
| Option | RS-485 Module |
